Movetrics F1-3D · SIX-AXIS FORCE MEASUREMENT
Measure the forces vertical plates cannot see.
Full 3D forces and moments, live in under 60 seconds—powered by Movetrics Studio and transparent AI.
Movetrics F1-3D is shipping now through the Founding 20 Pilot Program.
- Patent Pending Technology
- Invented & Made in Germany
- 35+ Years Sensor Innovation
- Six axes per plate
- 2,000 samples/s/channel
- Two 30 mm plates
Movement is freedom.
Movetrics exists to make movement intelligence accessible, practical, and useful.
F1-3D is our first platform: credible 6-axis 3D force measurement hardware, applied software, transparent AI, and data that remains available to the customer.
The wider direction is a movement-intelligence infrastructure that makes repeated measurement easier to understand and act on—without hiding uncertainty behind a score.
A Vertical Plate Can Answer a Vertical Question Brilliantly.
If your entire testing program is countermovement jumps, vertical isometrics, and a small set of vertical force-time metrics, a good 1D force plate may be exactly what you need.
But human movement does not stay on one axis.
Acceleration has a direction. Braking has a direction. Cutting creates side-to-side force. Every contact can create rotation.
A vertical-only plate records the up-and-down part and leaves the rest outside the measurement.
That does not make 1D wrong. It makes the buying decision simple.
Buy a 1D force plate when you are certain your questions will remain vertical. Choose Movetrics F1-3D when you want vertical workflows today without closing the door on horizontal forces and moments tomorrow.

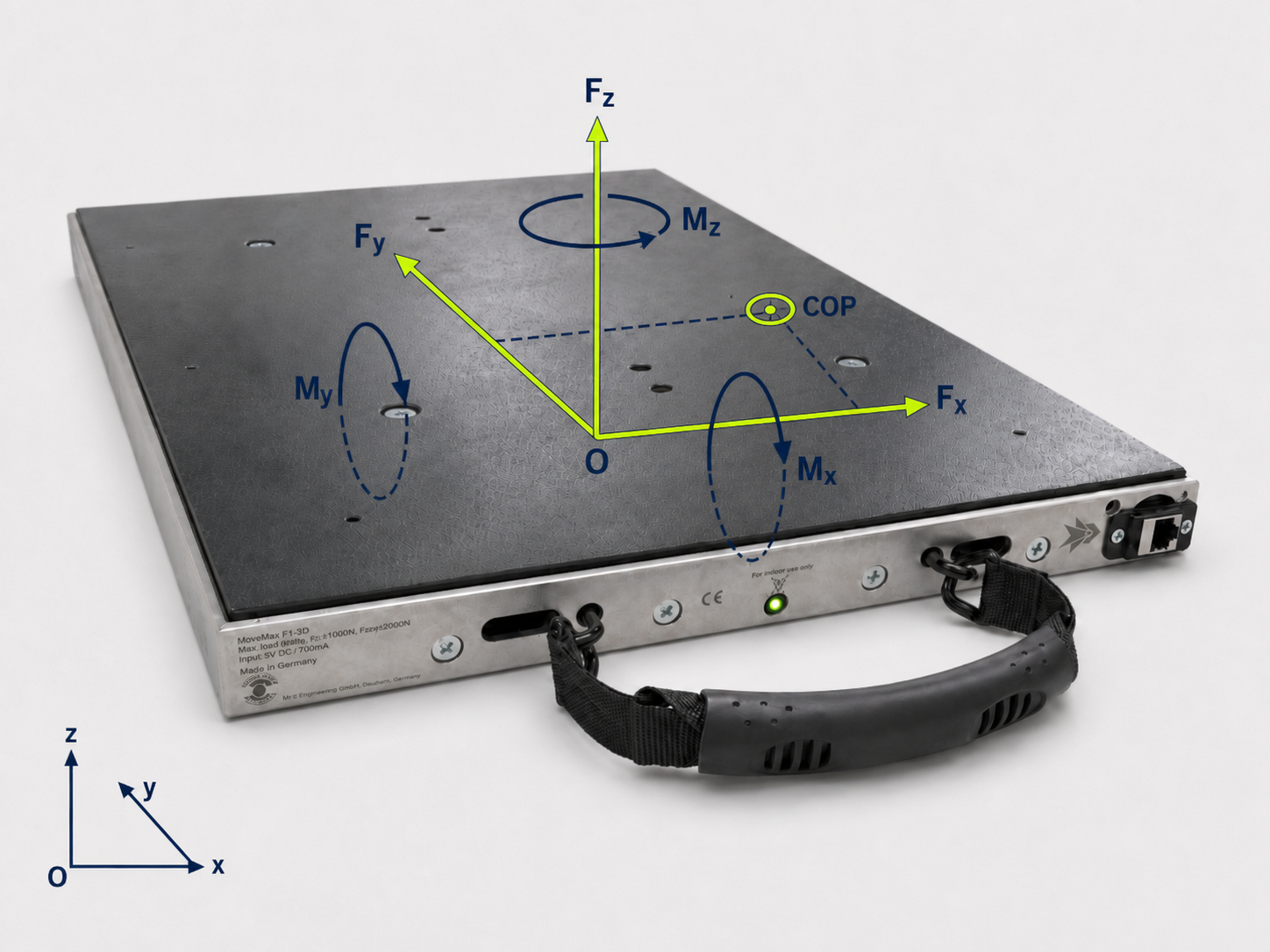

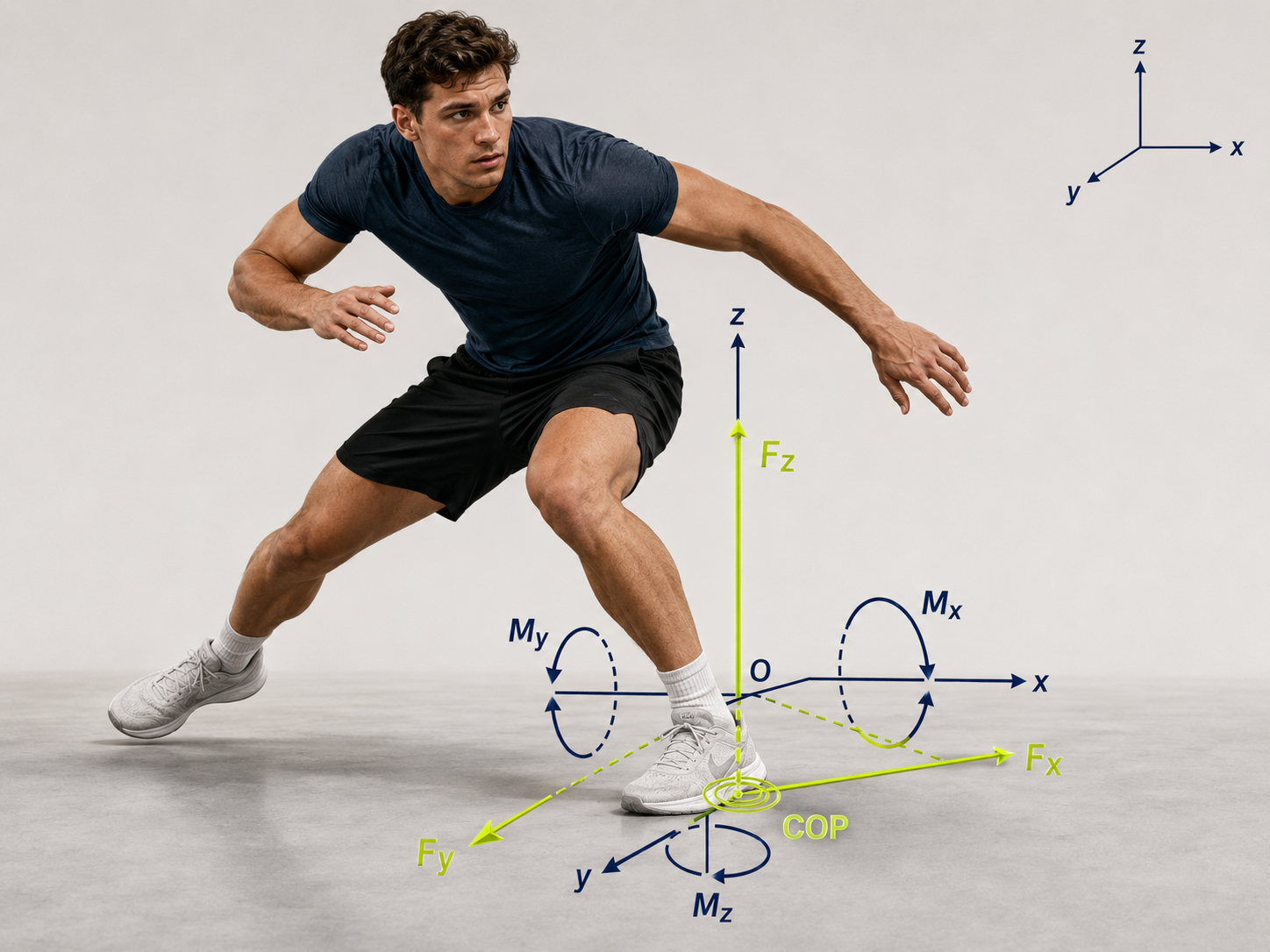

Six measured components. One more complete picture.
Every Movetrics F1-3D board measures:
- Fx: fore-aft force
- Fy: side-to-side force
- Fz: vertical force
- Mx: moment about the x-axis
- My: moment about the y-axis
- Mz: moment about the z-axis
The result is the ability to examine how force is produced, redirected, absorbed, and rotated through the task.
For a vertical jump, Fz may still be the main signal.
For a sprint start, deceleration, lateral task, gait pass, or rotational movement, the other channels can become the question.
Movetrics F1-3D acquires all six components simultaneously at 2,000 samples per second per channel.
Hardware that leaves the lab. Software that leaves the raw signal intact.

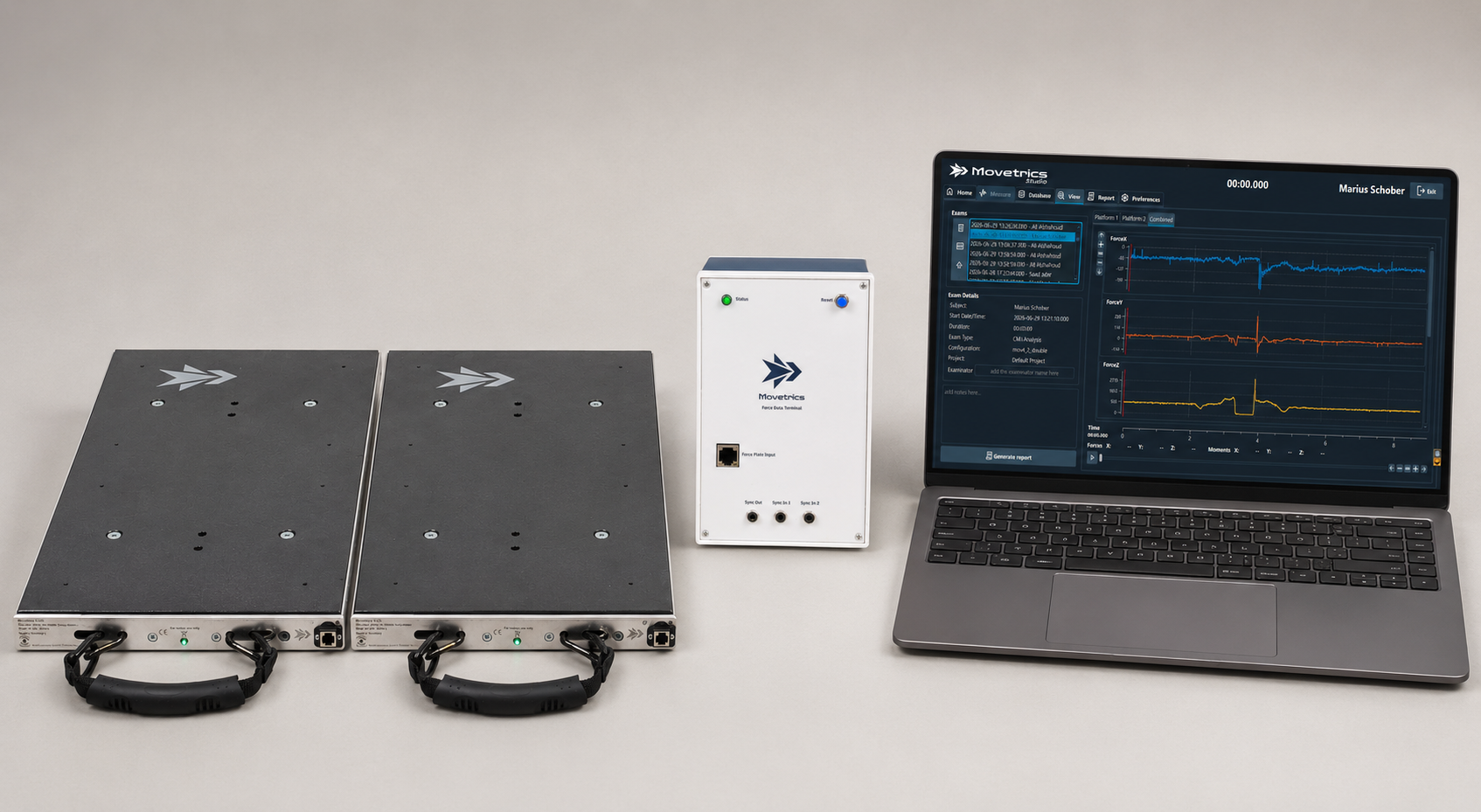

F1-3D is a complete measurement chain:

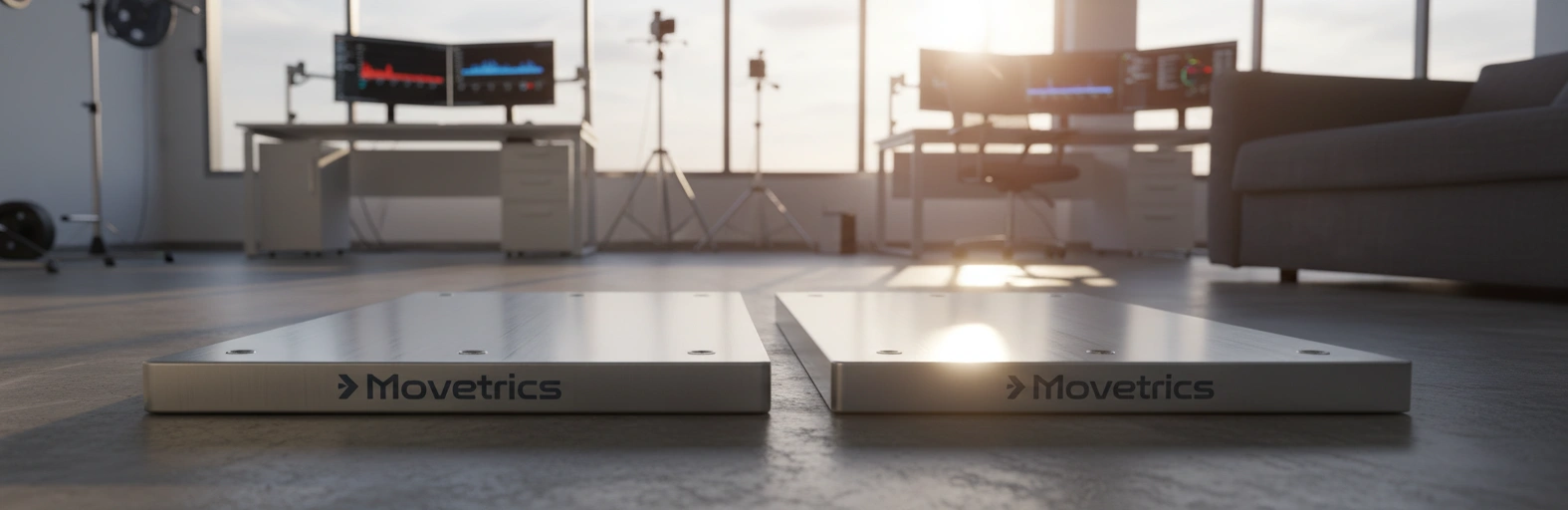

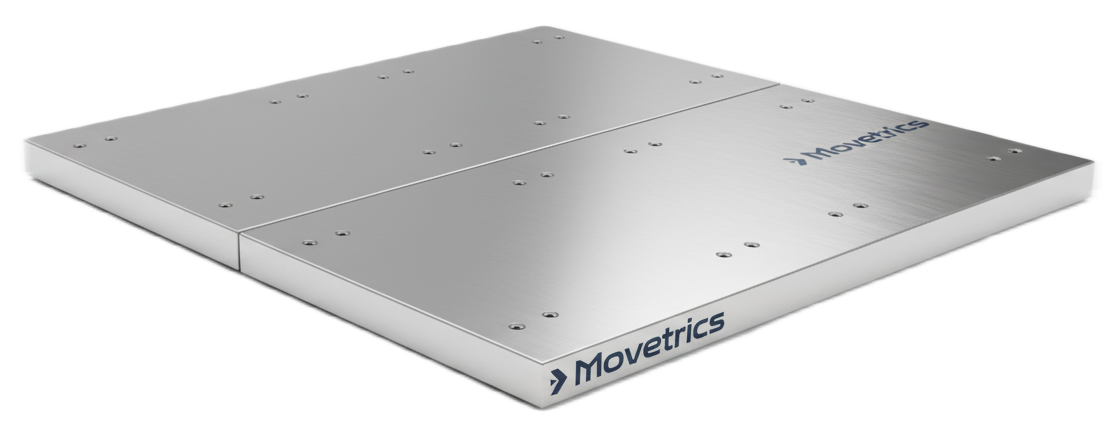

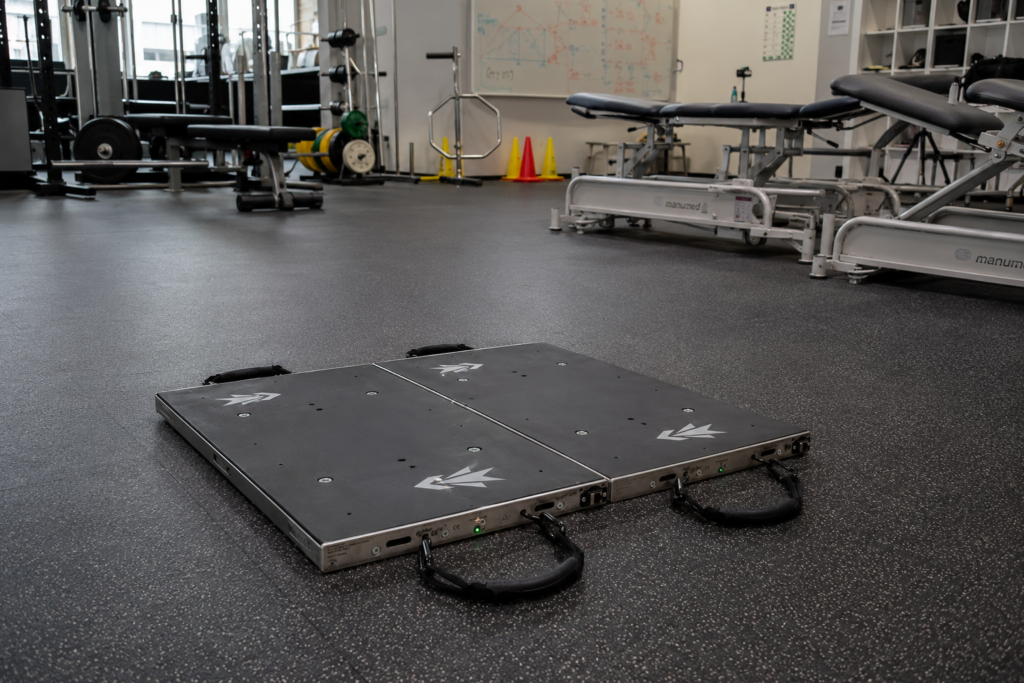

Two 3D Force Plates

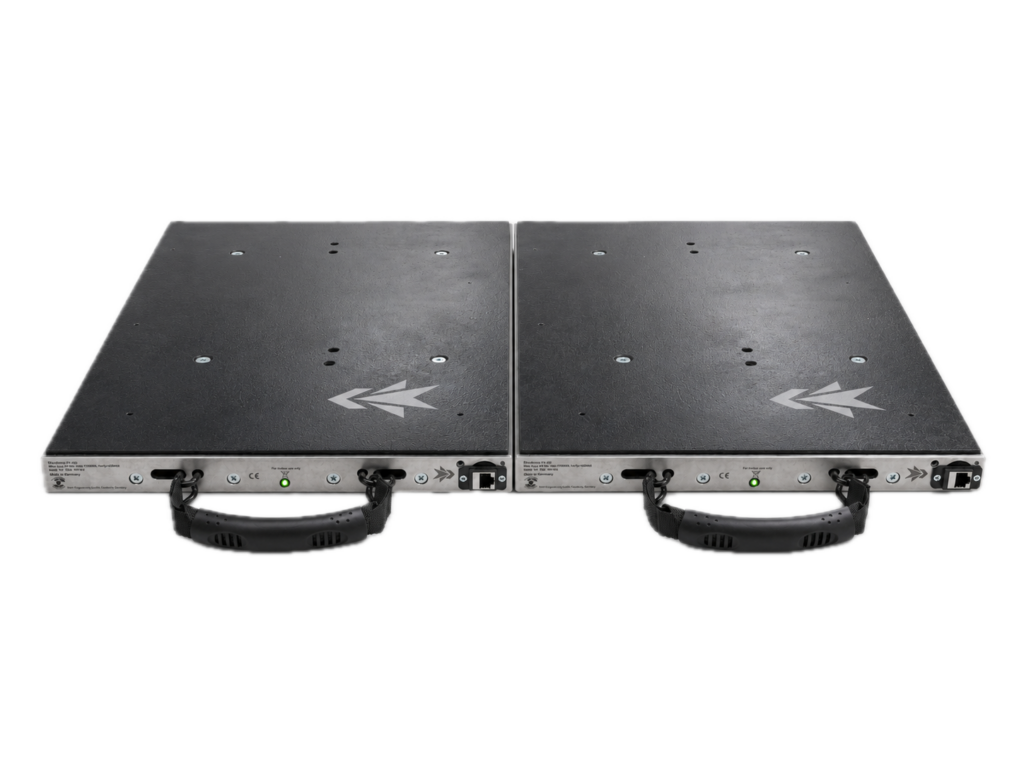

Each board is 600 × 350 × 30 mm. Place two side by side for a 600 × 700 mm dual area, expand to any supported setup of more than ten synchronized boards.
Force Data Terminal
Movetrics Force Data Terminal links the board chain to the computer and provides analog and synchronization interfaces for a wider measurement setup.
Movetrics Studio
Configure the layout, measure live, review the six force-and-moment traces, view teh COP path, run current workflows, generate a report, and export the raw CSV.
Movetrics AI
The AI layer in Movetrics helps check whether a test is suitable to interpret and explains calculated results in plain language.
Movetrics F1-3D acquires all six components simultaneously at 2,000 samples per second per channel.
From cases to live data in under 60 seconds.
For a saved layout:
- Place the boards on a suitable flat surface.
- Connect board to board.
- Connect the board chain to the Force Data Terminal.
- Connect the FDT to the PC by USB-C and open Movetrics Studio.
No permanent pit. No mandatory cloud workflow. No need to reduce a six-axis instrument to a raw-data science project before it becomes useful.
Why Movetrics F1-3D Is the New Standard
30 mm
Full 3D, Without The Pit.
Six-axis force measurement in a plate only 30 mm high. Use it directly on the floor or integrate it into existing gym floors without designing the room around the force plates.
€14,990
A Complete Dual 3D System
Two independent F1-3D force plates, Force Data Terminal, Movetrics Studio, required cables and accessories, onboarding and Pilot support—in one system.
6 Axes
More Than Vertical Force
Every plate measures Fx, Fy, Fz and Mx, My, Mz independently—giving you vertical, horizontal and lateral forces, moments and Center of Pressure from the same measurement.
Our Founding 20 Program
Two ultra-thin 3D force plates. Twelve synchronized measurement channels. 2,000 samples/s/channel. Live analysis, AI reports, and complete raw data in Movetrics Studio.
Traditional 3D Dual Plate Systems
€30,000 — €40,000+
Movetrics F1-3D (Dual Plate)
€14,990
all incl.
The stated price and our all-inclusive offer are exclusive to the first twenty Movetrics F1-3D systems which are available only after application for 20 selected organizations.
The first twenty Movetrics F1-3D systems are not for sale to the public.
Our Founding 20 is not crowdfunding and it is not a reservation for an unfinished idea. It is a limited commercial Pilot for organizations ready to put a finished, working Movetrics F1-3D system into meaningful use.
€14,990 excl. VAT includes:
- A numbered Founding 20 system
- Two F1-3D plates and Force Data Terminal
- Site-matched cable and synchronization kit
- Perpetual Movetrics Studio core software
- 24 months of software updates
- Current and all future workflows
- PDF reports and CSV export
- 12 months of Movetrics AI beta access
- 10 copies of the printed Founding Edition of The Complete Guide to 3D Force Data
- 24 months of personal priority support
- A 90-day success plan
- Five-year limited B2B hardware warranty
- One installation and enablement visit in the EU service area
- Personal commissioning and primary-workflow configuration
- Two hours of on-site training after first configuration
- Direct influence over the protocols and workflows we integrate next
- The right to purchase up to 10 additional identical dual systems for identical conditions within 18 months
Our Live-Data Guarantee
At delivery, both plates must stream all six components, record the agreed workflow, and produce a CSV export or Studio PDF report. If Movetrics cannot make the agreed system work within 30 days, the customer may return it for a full refund of the system price.
Built for people who need the data to move into practice.
Sports
Jump, landing, starting, braking, direction, and repeated-measurement workflows.
Gyms
A differentiated testing service with a system clients can see, understand, and revisit.
Education
Six-axis teaching and student research without committing a room and budget to a permanent pit.
Research
Synchronized multi-axis acquisition, analog output, Sync In/Out, and raw-data access.
Movement
Objective non-medical movement measurement inside a professional, practitioner-led process.
Frequently Asked Questions
Is F1-3D only for researchers?
No. It was designed to make six-axis measurement practical for performance teams, gyms, applied education, research, and professional movement environments. Researchers will value the raw data and interfaces; applied users will value the guided workflows, rapid setup, reporting, and support.
Can F1-3D run ordinary vertical jump tests?
Yes. A six-axis plate still measures vertical force. Current configured Studio workflows include Countermovement Jump, Squat Jump, and Drop Jump. The reason to choose F1-3D is that the same hardware preserves horizontal-force and moment data when the task or your program expands.
Do I need an internet connection?
Not for measurement, review, local records, core calculations, or CSV export. Advanced calculations, phase detection, report generation, and Movetrics AI require an internet connection.
Is the Pilot system ready to ship?
Yes. The product is operational and the first customer system is already in use. Founding 20 delivery is normally 4–6 weeks with full prepayment or 6–8 weeks with milestone payment, subject to confirmed configuration and availability.
Bring us the question you actually need to answer.
Tell us what you want to measure and what success in the first 90 days would look like. We will tell you directly whether F1-3D is the right fit.
